Hamburger Bun Pan

Hamburger Bun Pans — Tooling & Custom Engineering

Multiple cavity layouts, precise dimensions, and long-life molds developed in-house.

In-house Deep Drawing Molds
Stable cavity shape and consistent dimensions.
Multiple Cavity Layouts
From 8 to 30+ indents available.
High Strength & No Deformation
Designed for industrial baking lines.
Custom Development Supported
New cavity size and layout can be developed.

Engineered Cavities & Precise Dimensions

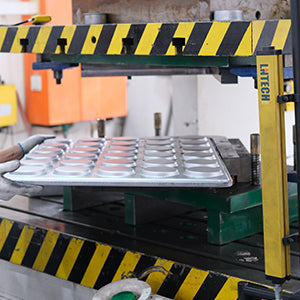

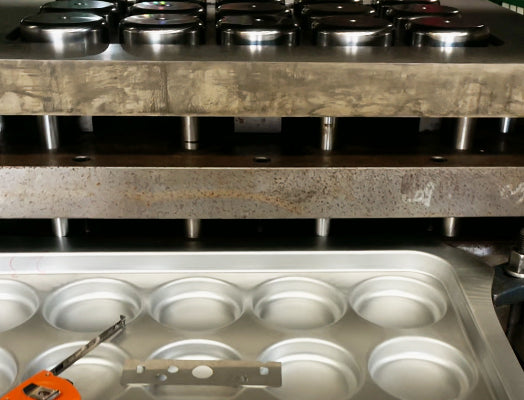

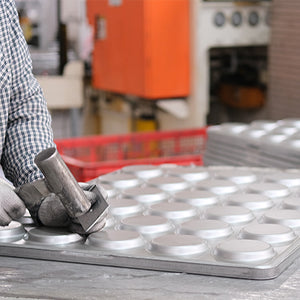

Each cavity is formed by deep drawing molds to ensure uniform diameter, depth, and spacing.

Overall size, cavity diameter, depth, and center-to-center distance can be customized based on your production requirements.

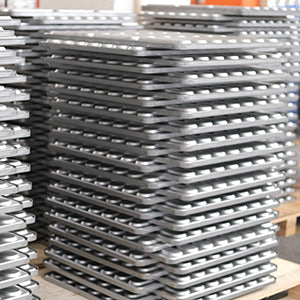

We already manufacture hamburger bun pans in various standard sizes and layouts, including 40x60cm, 46x66cm, 60x80cm, 73.8x50.3cm, and other non-standard formats.

Existing molds help shorten lead time, while new tooling can be developed if required.

Type	Overall Size	Single Indent	Single Indent	Single Indent	Single Indent
Hamburger bun pan	60x80cm	10cm	12cm	14cm	17cm
Hamburger bun pan	40x60cm	7.62cm	10.2cm	10.8cm	12.5cm
Hamburger bun pan	73.8x50.3cm	10.3cm	11.43cm	/	/

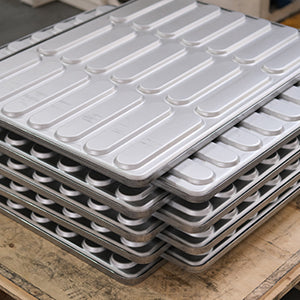

Hot dog pan	60x80cm	18x5.5cm	18.5x5.5cm	17.5x5.4cm	25x6cm

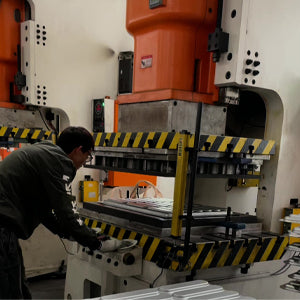

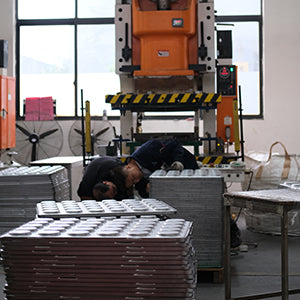

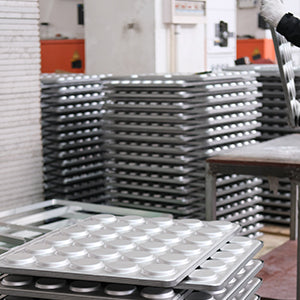

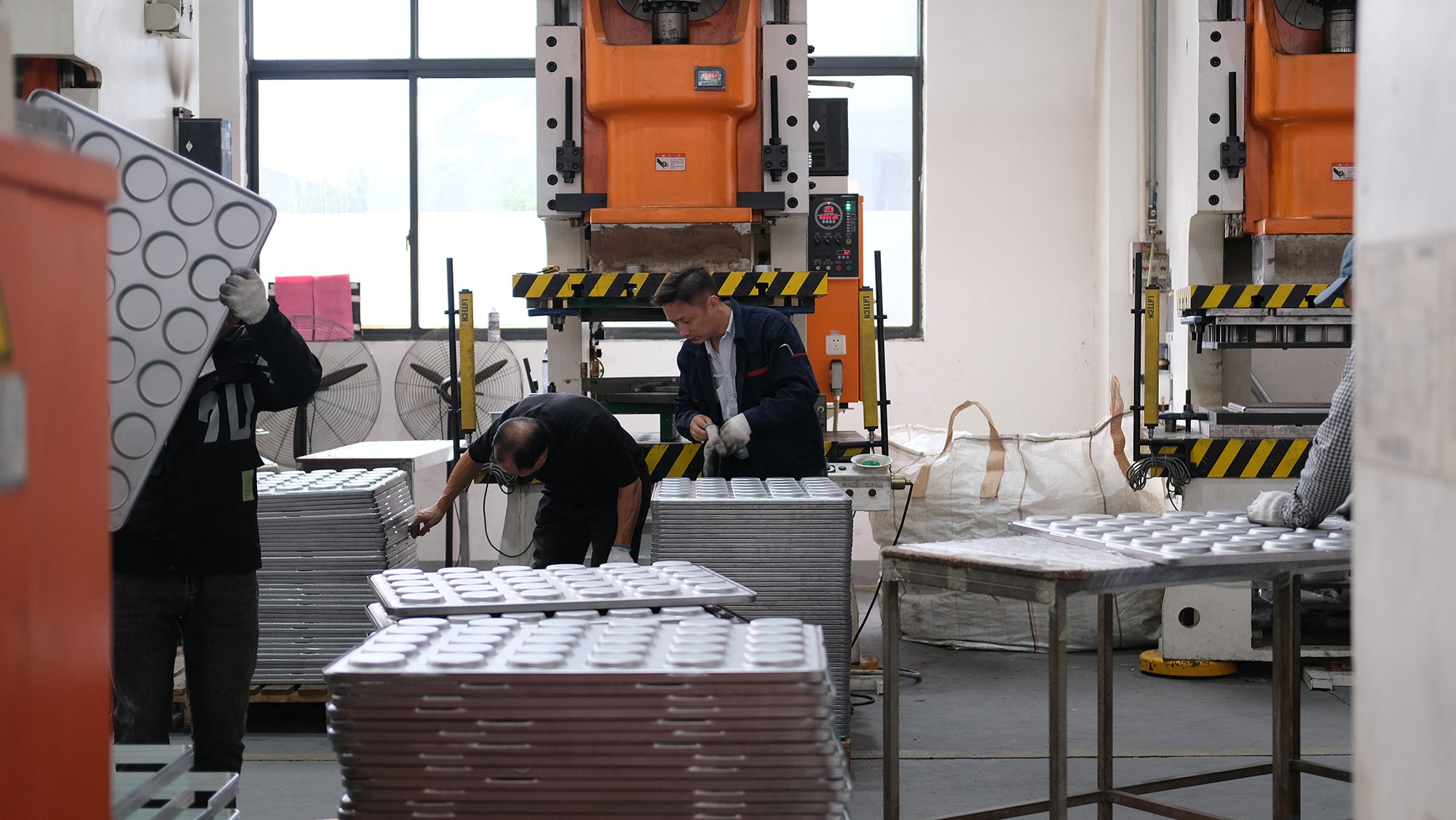

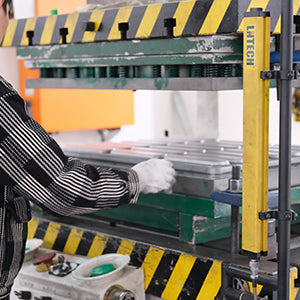

Manufactured with Our Own Tooling & Equipment

From mold machining to deep drawing and finishing, all processes are completed in our factory, ensuring consistency, durability, and reliable delivery.

Get a Custom Quote
